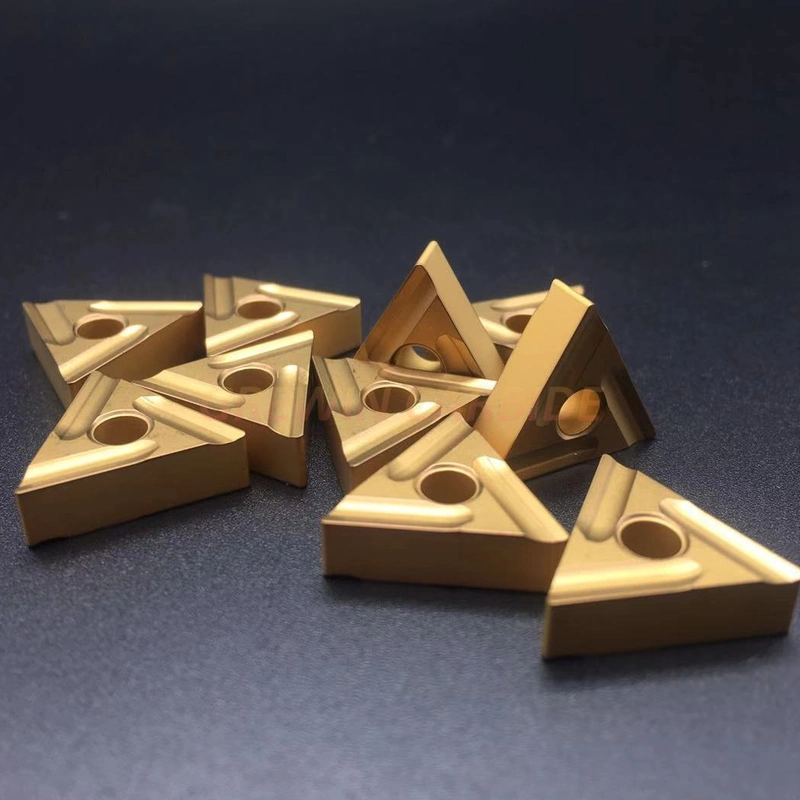

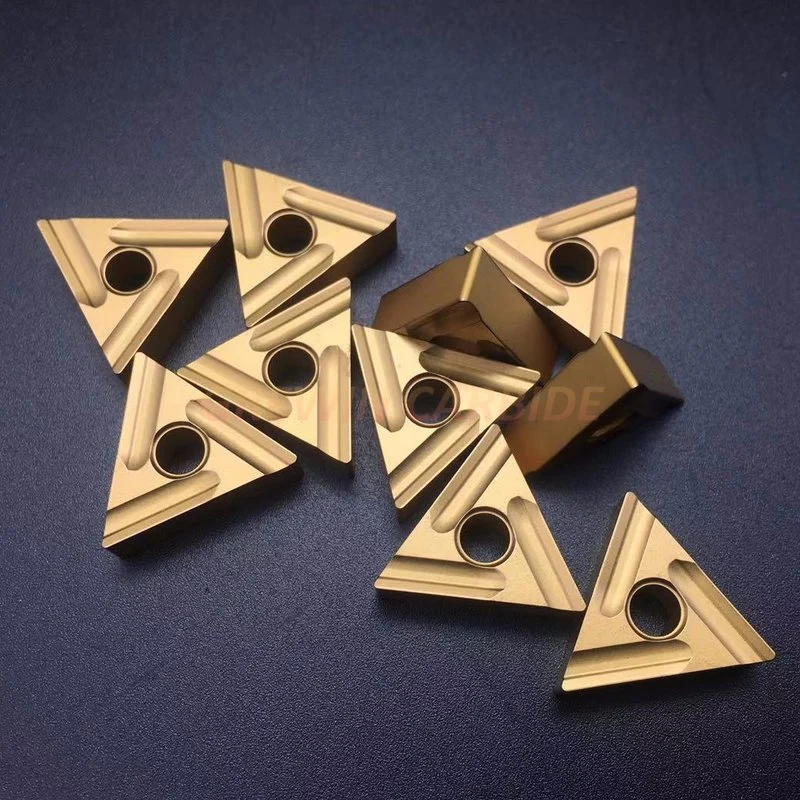

Tungsten Carbide Indexable Inserts For Stainless Steel
Industry of application
CNC tool products are widely used in:
Automotive manufacturing industry,
Mold manufacturing industry,
Aviation industry,
Defense industry,
Heavy processing industry and many other field.
we can produce various types cutting insert according to different customized drawings.
we can provide the overall supporting solutions for the machining field.
Materials to be cut
steel cutting, stainless steel cutting, cast iron cutting, Aluminum cutting
Main Products
Aluminum turning inserts:
CCGX, DCGX, TCGX, VCGX, SCGX, SEHT, APKT.
Turning inserts:
CNMG, SNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA,
TNUN, WNMG, DCMT, RPMT
Cermets and Ceramics inserts:
SEKN, SPKN, SPRN, SEEN, TNGG, CNMG, SNMG, TNMG, CCMT, DNMG, WNUN,
WNMG
Milling inserts:
SEKN, SPKN, RDKW, RPMW, TPCN, TPKN, TPAN, APKT, APKT
Grades
Standard Inserts Model
Call us or email us for catalogue with detail sizes sheet.
From material to your hand
Industry of application
CNC tool products are widely used in:
Automotive manufacturing industry,
Mold manufacturing industry,
Aviation industry,
Defense industry,
Heavy processing industry and many other field.
we can produce various types cutting insert according to different customized drawings.
we can provide the overall supporting solutions for the machining field.
Materials to be cut
steel cutting, stainless steel cutting, cast iron cutting, Aluminum cutting
Main Products
Aluminum turning inserts:
CCGX, DCGX, TCGX, VCGX, SCGX, SEHT, APKT.
Turning inserts:
CNMG, SNMG, TNMG, CCMT, WCMX, DNMG, SNUN, TNGA,
TNUN, WNMG, DCMT, RPMT
Cermets and Ceramics inserts:
SEKN, SPKN, SPRN, SEEN, TNGG, CNMG, SNMG, TNMG, CCMT, DNMG, WNUN,
WNMG
Milling inserts:
SEKN, SPKN, RDKW, RPMW, TPCN, TPKN, TPAN, APKT, APKT
Grades
| Grade | ISO Code | Density g/cm3 | Hardness HRA | T.R.S MPa | Applications recommended |
| YG3 | K05 | 15.10 | 92.0 | 1400 | Suitable for finishing of cast iron and nonferrous metal. |
| YG6X | K10 | 14.95 | 92.5 | 2200 | The finishing & semi-finishing of cast iron and nonferrous metals and also for the machining of manganese steel and hardening steel. |
| YG6 | K15 | 14.95 | 91.5 | 2400 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YG8 | K20 | 14.80 | 90.0 | 2900 | |
| YW1 | M10 | 13.30 | 92.5 | 2100 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel. |
| YW2 | M20 | 13.10 | 92 | 2400 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the machining of railway wheel hubs. |
| YT15 | P10 | 11.4 | 92.0 | 2100 | Suitable for the finishing and semi-finishing for steel and cast steel with a moderate feed rate and rather high cutting speed. |
| YT14 | P20 | 11.6 | 91.5 | 2100 | Suitable for the finishing and semi-finishing of steel and cast steel. |
| YT5 | P30 | 13.0 | 90.5 | 2400 | Suitable for the heavy duty rough turning of and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
Standard Inserts Model
| TYPE | Dimension ( mm ) | |||||||||||||
| L | I.C | S | d | r | ||||||||||
| CCMT | ( ISO ) | ( ANSI ) | ||||||||||||
| 060202 | 21.50 | 6.4 | 6.35 | 2.38 | 2.8 | 0.2 | ||||||||
| 060204 | 21.51 | 6.4 | 6.35 | 2.38 | 2.8 | 0.4 | ||||||||
| 09T304 | 32.51 | 9.7 | 9.525 | 3.97 | 4.4 | 0.4 | ||||||||
| 09T308 | 32.52 | 9.7 | 9.525 | 3.97 | 4.4 | 0.8 | ||||||||
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.5 | 0.4 | ||||||||
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.5 | 0.8 | ||||||||
| TYPE | Dimension ( mm ) | |||||||||||||
| L | I.C | S | d | r | ||||||||||
| CNMA | ( ISO ) | ( ANSI ) | ||||||||||||
| 090304 | 321 | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 | ||||||||
| 90308 | 322 | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 | ||||||||
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | ||||||||
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | ||||||||
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | ||||||||
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | ||||||||
| TYPE | Dimension ( mm ) | ||||||
| L | I.C | S | d | r | |||
| CNMG | ( ISO ) | ( ANSI ) | |||||
| 090304 | 321 | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 | |
| 90308 | 322 | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 | |
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | |
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | |
| TYPE | Dimension ( mm ) | ||||||
| L | I.C | S | d | r | |||
| CNMM | ( ISO ) | ( ANSI ) | |||||
| 090304 | 321 | 9.7 | 9.525 | 3.18 | 3.81 | 0.4 | |
| 90308 | 322 | 9.7 | 9.525 | 3.18 | 3.81 | 0.8 | |
| 120404 | 431 | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | |
| 120408 | 432 | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | |
| 160608 | 542 | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | |
| 190612 | 643 | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | |
