Introduction:

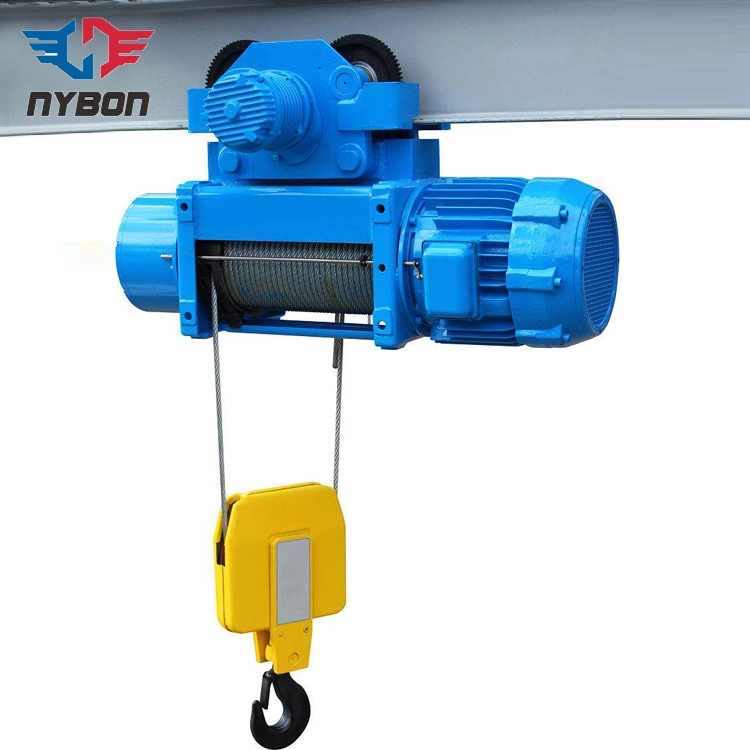

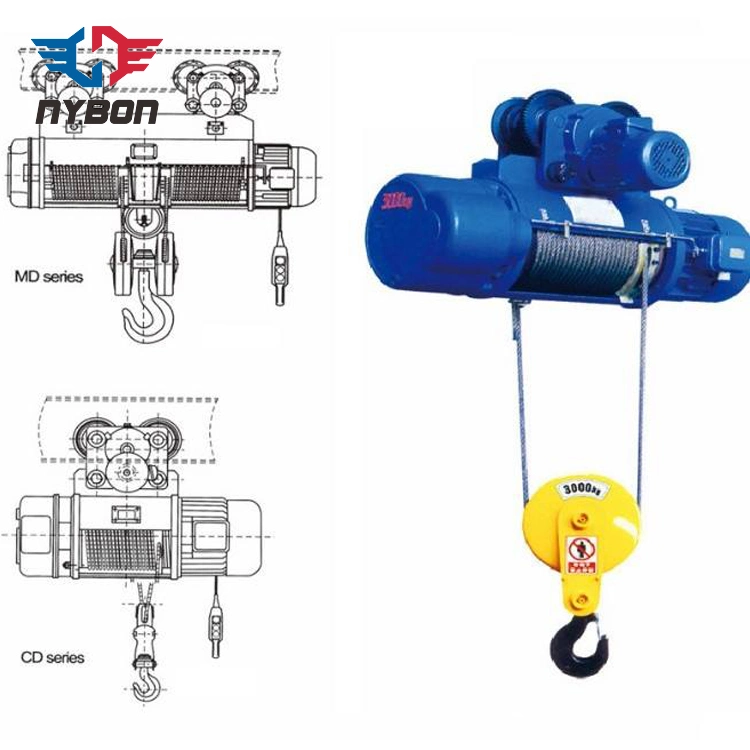

CD, MD 0.5 ~ 32t series wire rope electric hoist is a universal portable lifting equipment. The product is compact in structure,
small in size,large in lifting capacity and wide in use. It is an effective tool for improving labor conditions and improving
productivity,and is a general lifting device for industrial and mining enterprises.
Operating Conditions:
1.Altitude does not exceed 1000m
2.Ambient air temperature is -20 ° C ~ +40 ° C
3.Ambient air humidity is not more than 85% (at 25 ° C)
4.Power: three-phase AC, 380V, 50HZ. Motor terminal voltage fluctuation ±10%
5.The electric hoist is generally installed indoors. When installing outdoors, a rain cover should be added.
When the above environmental conditions are not met, special orders are made according to non-standard products.
Main Structure:
Reducer, running organizations, roller equipment, hook devices, couplings, flexible cable current into the device and stopper.
Motor is with cone rotor motors, set the power and braking force in one.
Electric Wire Rope Hoist-Installation:
a) Used with LD and LX single beam cranes
b) Mounted on a fixed suspended I-beam rail for linear or curved movement
c) Fixed installation, for lifting or winch, divided into four ways: upper, lower, left and right
Electric hoists are not suitable for use in environments with explosive or corrosive gases.
They are also not suitable for lifting molten,red hot metals,other flammable and explosive materials.
| Type | CD1,MD1 | |||||||||||||||||||||||||
| Capacity | t | 0.5 | 1 | 2 | 3 | |||||||||||||||||||||
| Lifting Height | m | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | ||||
| Lifting Speed | m/min | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | 8(8/0.8) | |||||||||||||||||||||
| Traveling Speed | m/min | 20(30) | 20(30) | 20(30) | 20(30) | |||||||||||||||||||||
| Wire Rope | Dia. | mm | 4.8 | 7.4 | 11 | 13 | ||||||||||||||||||||
| GB1102-74 | 6*37+1 | 6*37+1 | 6*37+1 | 6*37+1 | ||||||||||||||||||||||
| Lifting Motor | Type | ZD121-4 ZDS1-0.2/0.8 | ZD122-4 ZDS1-0.2/1.5 | ZD131-4 ZDS1-0.4/3 | ZD141-4 ZDS1-0.4/4.5 | |||||||||||||||||||||
| Power | kW | 0.8(0.2/0.8) | 1.5(0.2/1.5) | 3(0.4/3) | 4.5(0.4/4.5) | |||||||||||||||||||||
| Rotate Speed | r/min | 1380 | 1380 | 1380 | 1380 | |||||||||||||||||||||
| Traveling Speed | Type | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | |||||||||||||||||||||
| Power | kW | 0.2 | 0.2 | 0.4 | 0.4 | |||||||||||||||||||||
| Rotate Speed | r/min | 1380 | 1380 | 1380 | 1380 | |||||||||||||||||||||
| Running Rail | 16-28b | 16-28b | 20a-32c | 20a-32c | ||||||||||||||||||||||
| Working Duty | M3 | M3 | M3 | M3 | ||||||||||||||||||||||
| Operation Times | h | 240 | 240 | 240 | 240 | |||||||||||||||||||||
| CD1,MD1 | ||||||||||||||||||||||||||
| Capacity | t | 5 | 10 | 16 | ||||||||||||||||||||||
| Lifting Height | m | 6 | 9 | 12 | 18 | 24 | 31 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | |||||||||||
| Lifting Speed | m/min | 8(8/0.8) | 7(7/0.7) | 3.5(3.5/0.35) | ||||||||||||||||||||||
| Traveling Speed | m/min | 20(30) | 20(30) | 20(30) | ||||||||||||||||||||||
| Wire Rope | Dia. | mm | 15.5 | 15.5 | 15.5 | |||||||||||||||||||||
| GB1102-74 | 6*37+1 | 6*37+1 | 6*37+1 | |||||||||||||||||||||||
| Lifting Motor | Type | ZD141-4 ZDS1-0.8/7.5 | ZD151-4 ZDS1-1.5/13 | ZD151-4 ZDS1-1.5/13 | ||||||||||||||||||||||
| Power | kW | 7.5(0.8/7.5) | 13(1.5/13) | 13(1.5/13) | ||||||||||||||||||||||
| Rotate Speed | r/min | 1380 | 1380 | 1380 | ||||||||||||||||||||||
| Traveling Speed | Type | ZDY121-4 | ZDY121-4 | ZDY121-4 | ||||||||||||||||||||||
| Power | kW | 0.8 | 0.8*2 | 0.8*2 | ||||||||||||||||||||||
| Rotate Speed | r/min | 1380 | 1380 | 1380 | ||||||||||||||||||||||
| Running Rail | 32-45c | 40-63c | 63c | |||||||||||||||||||||||
| Working Duty | M3 | M3 | M3 | |||||||||||||||||||||||
| Operation Times | h | 240 | 240 | 240 | ||||||||||||||||||||||
Package&Shipping
Reated Products
Company Information
Customer Praise
FAQ
1. Q: What's your MOQ?
A: 1 Set;
2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;
3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
4. Q: What's your warranty period?
A: 12 months from winches accepted;
5. Q: Do you have engineer oversea installation service?
A: Yes; We have;
6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.
7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty,
we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch,
wire rope, fiber rope, etc.
9. Q: Could your winches drag inclined?
A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
